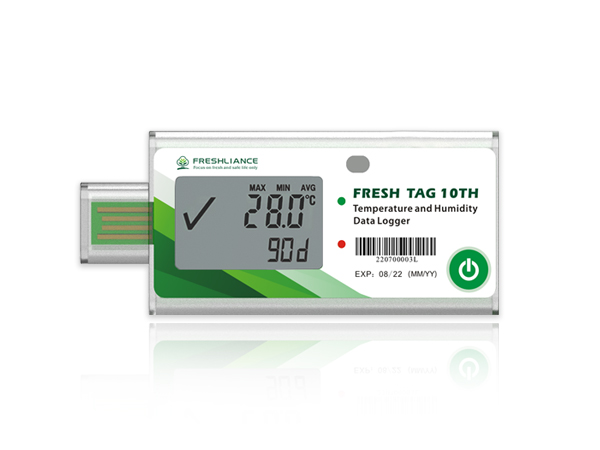

Fresh Tag 10TH Temperature and Humidity Data Logger
Fresh Tag 10TH is a configurable single-use USB data logger that records temperature and relative humidity together throughout transport and storage. Its LCD display, alarm indicators and automatic encrypted reports provide quick, traceable evidence for cold-chain quality control.
Introduction
The Fresh Tag 10TH is a configurable, single-use temperature and humidity data logger designed to monitor sensitive products throughout transportation and storage. By recording both environmental conditions at the same time, it provides a more complete picture of shipment quality than a temperature-only logger.

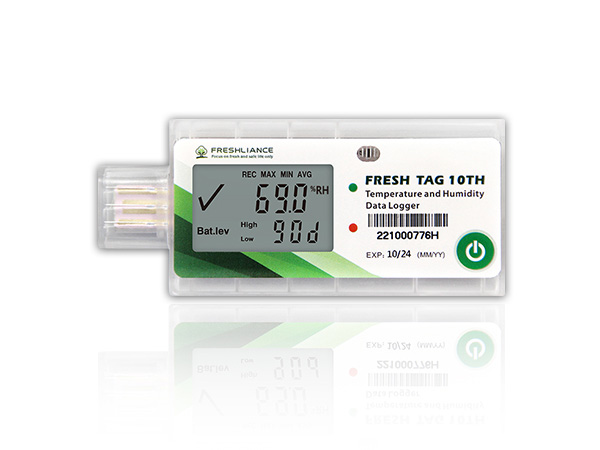

Its large LCD displays current, minimum, maximum and average readings, remaining operating days, battery status and alarm information. Green and red LED indicators make it easy for warehouse teams, drivers and receiving personnel to identify normal or abnormal conditions without first connecting the device to a computer.
Before use, parameters such as logging interval, start delay and alarm limits can be configured using Freshliance Tools. At the end of the trip, the logger connects directly through USB and automatically generates encrypted PDF and CSV reports, with no separate reader required.
Key Features and Benefits
Configurable parameters
Logging interval, start delay and alarm thresholds can be preset for the required shipment profile.
Temperature and humidity monitoring
Records both environmental factors to support products affected by heat, cold and moisture.
Up to 6 alarm points and 9 marks
Multiple alarm limits can be set before activation, while users can add event marks during the trip.

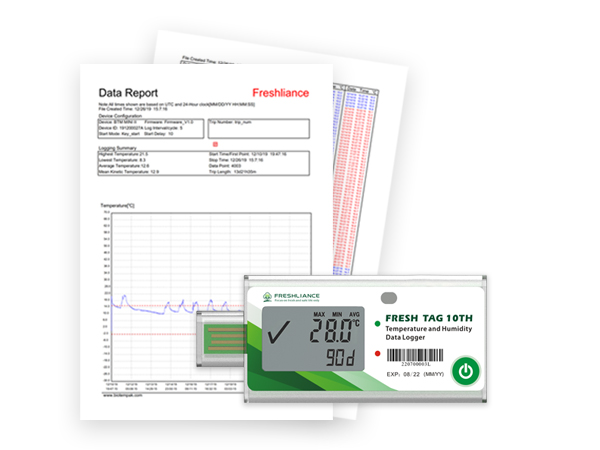

Automatic encrypted reports
Generates secure PDF and CSV reports with graphs and tables immediately after USB connection.
Long battery life and large memory
Supports trips of up to 120 days with capacity for as many as 65,000 readings.

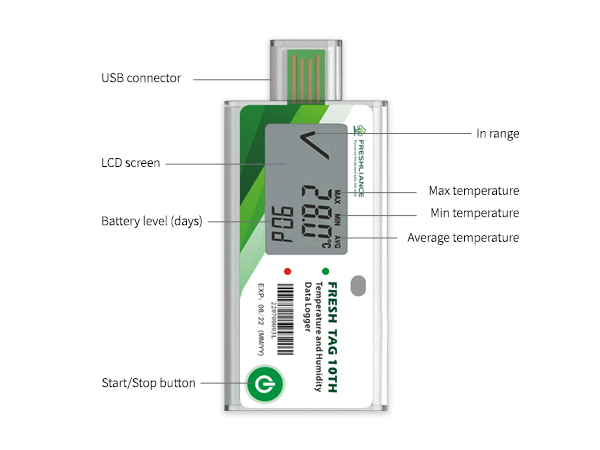

Large LCD and LED indication
Displays trip statistics, alarm status and remaining days clearly, with LED alerts for quick status checks.
Compact and easy to operate
The lightweight logger can be placed directly with the shipment and requires no driver or separate reader.

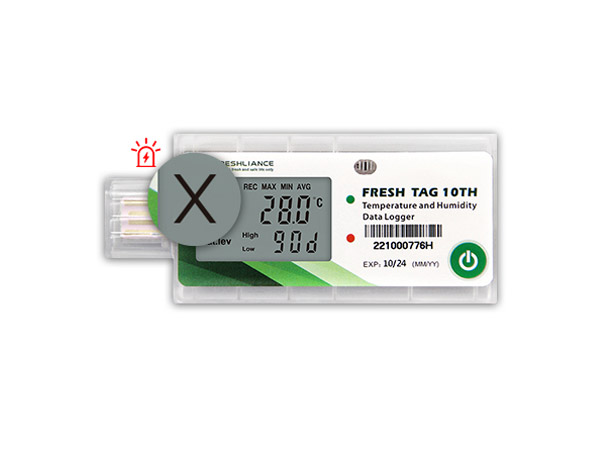

Alarm for abnormal conditions
When temperature or humidity moves outside configured limits, the LCD alarm symbol and red LED provide a clear warning.
How the Product Is Used
Typical Applications
- Pharmaceuticals and moisture-sensitive medicines
- Vaccines, diagnostics and clinical trial materials

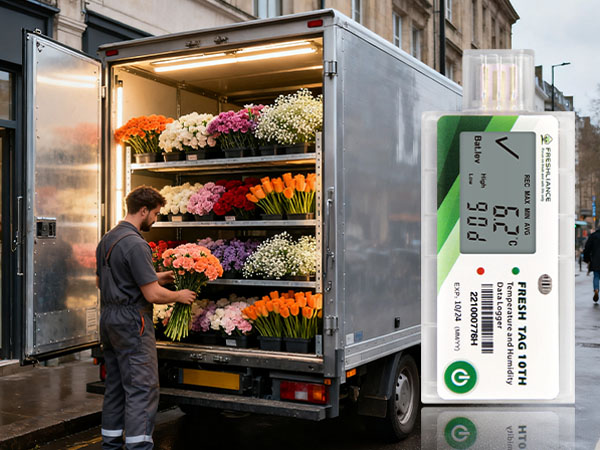

- Fresh produce, fruit, vegetables and flowers
- Seafood, meat, poultry, dairy and frozen foods
- Refrigerated trucks, containers and air freight
- Cold rooms, medical cabinets, freezers and laboratories
- Electronics, precision components and packaging materials
- Warehouses and distribution centres
Fresh Tag 10TH Specifications
| Model | Fresh Tag 10TH |
|---|---|
| Type of Use | Single use |
| Temperature Range | -30°C to +70°C |
| Temperature Accuracy | ±0.5°C full scale |
| Humidity Range | 0% to 100% RH |
| Humidity Accuracy | ±3% RH at 25°C and 20%–80% RH; ±5% RH outside this range |
| Logging Interval | 1 minute to 24 hours, user configurable |
| Start Delay | 0 minutes to 24 hours, user configurable |
| Connection | USB; NFC optional |
| Protection Grade | IP65 |
| Memory Capacity | Maximum 65,000 readings |
| Battery | CR2032 lithium battery |
| Display | LCD and LED indicators |
| Battery Life / Working Days | Maximum 120 days |
| Alarm Points | Maximum 6 alarm points |
| Event Marks | Maximum 9 marks |
| Dimensions | 94 mm (L) × 41 mm (W) × 8 mm (H) |
| Weight | 27.5 g |
| Compatible Operating Systems | Windows and macOS |
| Certificates | CE, RoHS, EN 12830 |
| Report Formats | Encrypted PDF, CSV, or PDF + CSV; temporary report available |
Freshliance Tools Software

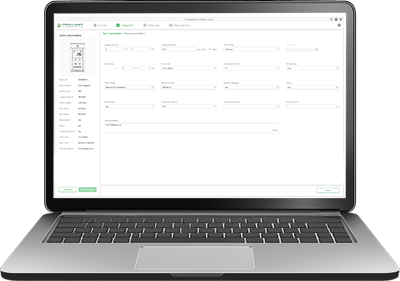

Freshliance Tools is the configuration and data-management software used with the Fresh Tag 10TH. Connect the logger directly to a compatible computer through USB to detect the device, review its status and prepare it for a monitoring trip.
Before deployment, users can configure the logging interval, start delay, temperature and humidity alarm limits, report title, time zone and other trip settings. The software also displays important device information, including the serial number, battery condition, operating status and selected start mode.
After monitoring is complete, Freshliance Tools supports detailed review of temperature and relative-humidity trends, recorded events, maximum, minimum and average values, and other trip statistics. Data can be exported in PDF, CSV, TXT or PNG formats, and results from multiple compatible loggers can be compared for quality-control and compliance analysis.

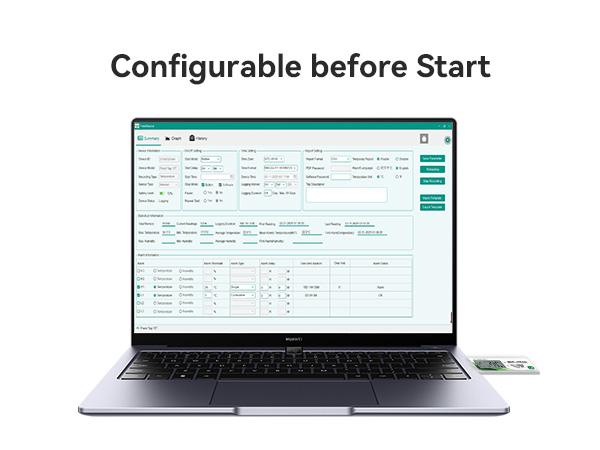

Configure Before Use
Set recording intervals, start delay, alarm thresholds, time zone and report information before activating the logger.
Temperature & Humidity Analysis
Review both environmental measurements in graphs and detailed records for a complete shipment history.
Automatic Device Detection
The software identifies the connected logger and presents its device ID, battery status, operating mode and configuration.
Flexible Report Export
Export monitoring results in PDF, CSV, TXT or PNG formats for internal review, customer records and compliance documentation.
Configuration, calibration and supplied accessories may vary. Contact Gee Gee Data Monitoring System EMS (Pty) Ltd for the latest datasheet and the correct model for your application.
