Atlas Log-IUT Ultra Low Dry Ice Temperature Data Logger
Reliable dry-ice monitoring for critical biological and pharmaceutical shipments
- Ultra-low monitoring
- Down to -90°C option
- Up to 35,000 readings
- PDF/CSV report
- WHO option available
- Minimum order: 50 units

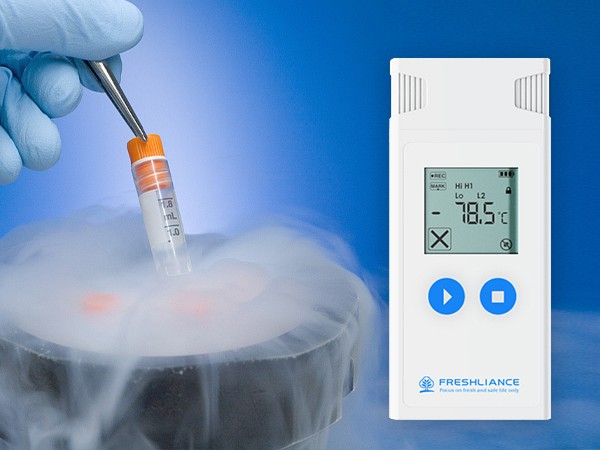

The single-use dry ice data logger is designed for shipments and storage environments that operate far below the range of standard cold-chain devices. It can monitor ultra-low temperatures associated with dry ice, deep-freeze packaging and specialist pharmaceutical distribution.
Introduction
The single-use dry ice data logger is designed for shipments and storage environments that operate far below the range of standard cold-chain devices. It can monitor ultra-low temperatures associated with dry ice, deep-freeze packaging and specialist pharmaceutical distribution.
The compact logger is placed with the product or within the qualified shipping system and records automatically throughout the journey. Configurable alarms identify excursions, while event marking and pause functions support documented handling procedures where required.
At destination, the logger connects to a computer and provides a secure PDF or CSV trip report. This allows quality teams to confirm that the required ultra-low-temperature conditions were maintained and to investigate any exposure outside the configured profile.
Key Features and Benefits
Ultra-low temperature capability
Designed for direct monitoring in dry-ice and deep-freeze environments.
Single-use workflow
Provides a dedicated, traceable record for one shipment without requiring return logistics.
Automatic electronic report
Creates PDF and CSV documentation through the integrated USB connection.
Configurable alarm profile
Alarm points can reflect the acceptance limits for the shipped product.
High-capacity recording
Captures frequent readings for detailed review of critical frozen journeys.
WHO-compliant option available
A WHO PQS compliant configuration is available for qualifying vaccine logistics requirements.
How the Product Is Used
Typical Applications
- Dry-ice pharmaceutical shipments
- Vaccines and biological materials
- Cell and gene therapy logistics
- Laboratory samples
- Deep-frozen food and ingredients
- Ultra-low-temperature packaging validation
Product configuration, calibration options and supplied accessories may vary. Contact Gee Gee Data Monitoring System EMS (Pty) Ltd for the latest datasheet and the correct model for your application.
Fresh Tag 10T Reference Specifications
| Model | Fresh Tag 10T |
|---|---|
| Working Days | Up to 120 days |
| Temperature Range | -30°C to +70°C |
| Temperature Accuracy | ±0.5°C (full scale) |
| Logging Interval | Configurable |
| Connector | USB |
| Start Delay | Configurable |
| Protection Grade | IP65 |
| Memory Capacity | PDF: maximum 65,000 readings; PDF + CSV: maximum 20,000 readings |
| Battery | CR2032 lithium battery |
| Display | LCD and LED |
| Alarm Points | Maximum 6 alarm points |
| Dimensions | 94 mm (L) × 41 mm (W) × 8 mm (H) |
| Weight | 27.5 g |
Freshliance Tools Software
Freshliance Tools is the configuration and analysis software used with the Atlas Log-IUT. Before deployment, users can connect the logger to a Windows or macOS computer and configure the logging interval, start delay, start mode, alarm thresholds, report options and other shipment-specific parameters.
When the logger is connected by USB, the software automatically identifies the device and displays its device information, battery status, operating state and configured settings. Recorded temperature data can be reviewed as graphs and tables, with maximum, minimum and average values available for quality assessment.
Configure before use
Set logging intervals from 1 minute to 24 hours, start delay, timed start and alarm limits.
Automatic USB detection
The connected logger is recognised automatically without an additional reader.
Detailed data analysis
Review trip graphs, tables, alarm events, marks and summary statistics.
Flexible report export
Export temperature records in PDF, CSV, TXT or PNG formats for archiving and compliance.
The Atlas Log-IUT can also automatically generate encrypted PDF, CSV or combined PDF & CSV reports directly on a computer after a trip, without requiring the software for report generation.
