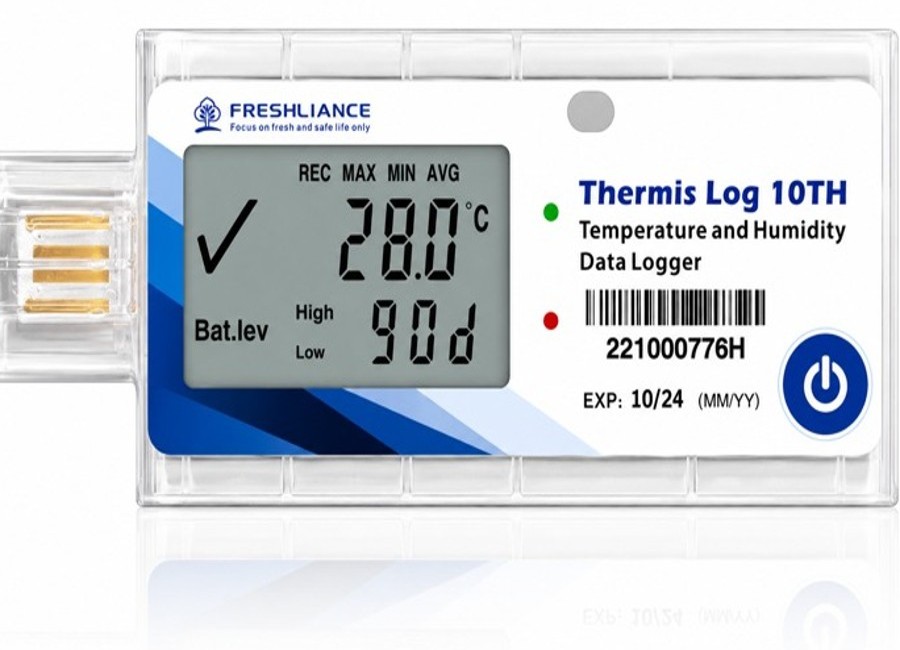

Thermis Log 10TH Single-use Temperature and Humidity Logger
Detailed environmental evidence for sensitive pharmaceutical products
- Temperature + humidity
- ±0.3°C / ±3% RH
- LCD and LED display
- Up to 65,000 readings
- Up to 120 days
- Minimum order: 50 units
Thermis Log 10TH is a high-accuracy single-use USB logger for simultaneous temperature and humidity monitoring. It is intended for products that can be affected by heat, cold or moisture, including medicines, biological materials, diagnostic products and specialist packaging components.
Introduction
Thermis Log 10TH is a high-accuracy single-use USB logger for simultaneous temperature and humidity monitoring. It is intended for products that can be affected by heat, cold or moisture, including medicines, biological materials, diagnostic products and specialist packaging components.
The large LCD presents environmental values and trip information clearly, while LED indicators provide quick operating and alarm feedback. Shipment parameters can be configured before use so the logger records according to the required interval, delay and alarm profile.
At the end of the trip, the integrated USB interface automatically creates PDF and CSV reports. These reports provide a convenient record for quality assurance, customer acceptance, compliance documentation and the investigation of environmental excursions.
Key Features and Benefits
High-accuracy dual sensing
Monitors temperature with accuracy up to ±0.3°C and humidity with accuracy up to ±3% RH in the specified range.
Large LCD display
Shows current data, alarm status and useful trip statistics without downloading the report.
Automatic electronic reports
Generates PDF and CSV files directly through USB with no external reader.
Configurable operation
Logging and alarm parameters can be prepared for different products and routes.
Large data capacity
Stores a detailed sequence of readings for long shipments and controlled storage.
Protected single-use design
Compact IP65 construction supports dependable handling in cold-chain operations.
How the Product Is Used
Typical Applications
- Pharmaceuticals and biologics
- Diagnostic and laboratory products
- Clinical research materials
- Humidity-sensitive packaging
- Warehouses and clean areas
- Healthcare and life-science logistics
Product configuration, calibration options and supplied accessories may vary. Contact Gee Gee Data Monitoring System EMS (Pty) Ltd for the latest datasheet and the correct model for your application.
Thermis Log 10TH Specifications
| Model | Thermis Log 10TH |
|---|---|
| Type of Use | Single use |
| Temperature Range | -30°C to +70°C |
| Temperature Accuracy | ±0.3°C full scale |
| Humidity Range | 0% to 100% RH |
| Humidity Accuracy | ±3% RH |
| Logging Interval | 1 minute to 24 hours, configurable |
| Start Delay | 0 minutes to 24 hours, configurable |
| Memory Capacity | Maximum 65,000 readings |
| Alarm Points | Maximum 6 points |
| Event Marks | Maximum 9 marks |
| Report Format | PDF, CSV, or PDF & CSV |
| Connection | USB |
| Battery | 3.0 V CR2032 lithium battery |
| Display | LCD and LED |
| Battery Life | Maximum 90 days |
| Protection Class | IP65 |
| Compatible O/S | Windows and macOS |
| Weight | 27.5 g |
| Dimensions | 94 × 41 × 8 mm |
| Compliance | EN 12830, HACCP, GSP and DO-160 |
Thermis Tools
Thermis Tools is PC software for configuring, retrieving and analysing data from the Thermis Log 10TH USB temperature and humidity logger. When the logger is connected by USB, the software detects the device and displays its identity, battery condition, operating status, logging interval and configured start mode.
Before deployment, users can configure the logging interval, start delay, temperature and humidity alarm thresholds, time zone and report settings. After monitoring, recorded temperature and relative-humidity trends can be reviewed in graphs and detailed data tables, together with minimum, maximum and average values.
Reports can be exported in PDF, CSV, TXT or PNG formats for quality records, shipment review and compliance documentation. The software can also compare information from multiple supported loggers on one chart, helping users identify excursions and performance differences between shipments or storage locations.
Configure Before Use
Set logging intervals, start delay, alarm limits and reporting preferences before the logger is activated.
Automatic USB Detection
Connect the logger directly to a computer without an external reader or specialist hardware.
Temperature & Humidity Analysis
Review environmental trends, alarm events and summary statistics in clear graphs and tables.
Flexible Report Export
Create PDF, CSV, TXT and PNG records for customers, quality teams and regulatory documentation.
